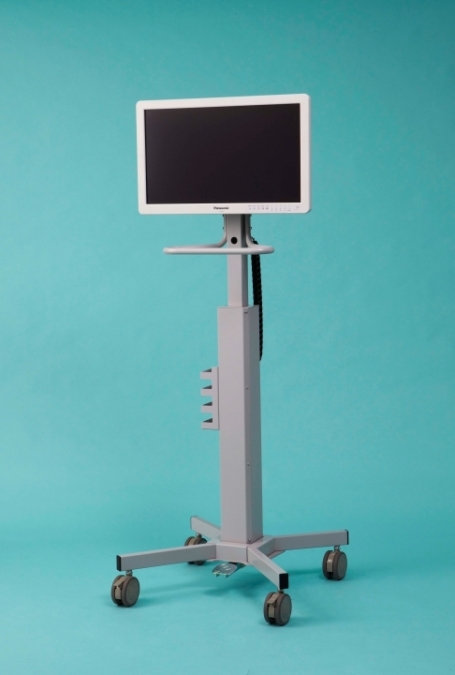

■Display Mounting

• The position of the holes for display mounting conforms to the VESA standard.

      F-FLX-020     :    75mm×75mm、100mm×100mm、300mm×100mm



      F-FLX-020-02  (Compatible with 32-inch 200 x 200)

                           :　100mm×100mm、200mm×200mm



      F-FLX-020-03  (Compatible with 32-inch 300 x 100)

　　　　　　  　 　　   　 :　100mm×100mm、200mm×200mm、300mm×100mm

• Display center height (1355mm - 1705mm)

• Allowable display load : Max. 15kg

　　*It may be lowered depending on the thickness of the display.

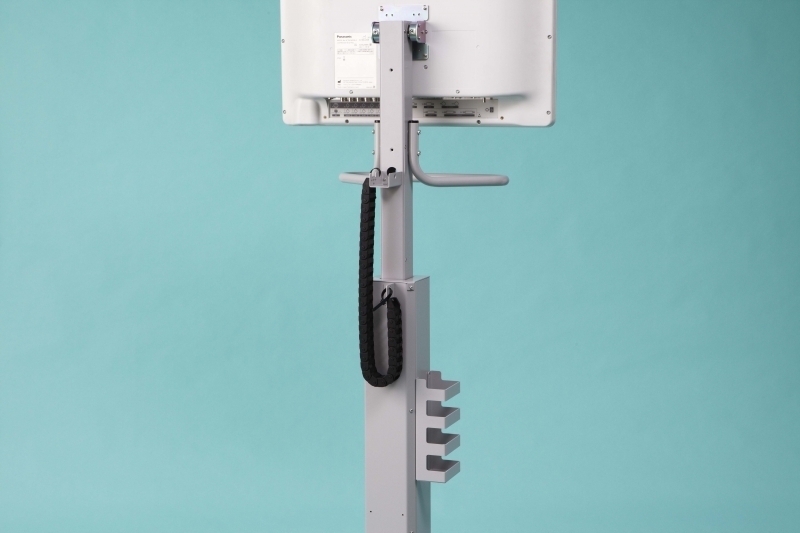

■Pocket for AC adapter

　It has a pocket for an AC adaptor and can be stored compactly.

　(Internal dimensions of the pocket: W100 x D65 x H220, allowable load: 2 kg)

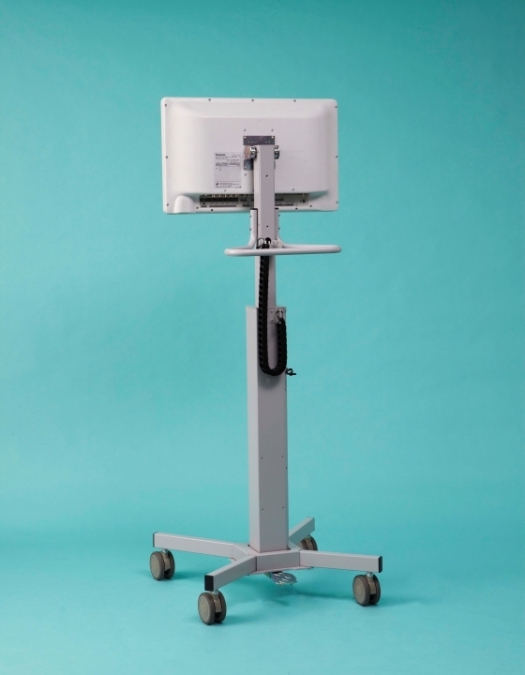

■Handle and Pedals for lifting and lowering

・The display position can be changed to any desired height by operating the elevation pedal.

・The handle and the elevator pedal can be positioned either in front of or behind the display.
