Medical Monitor Cart Display wagon (medical wagon) Display wagon with 4 shelves[Product Information]

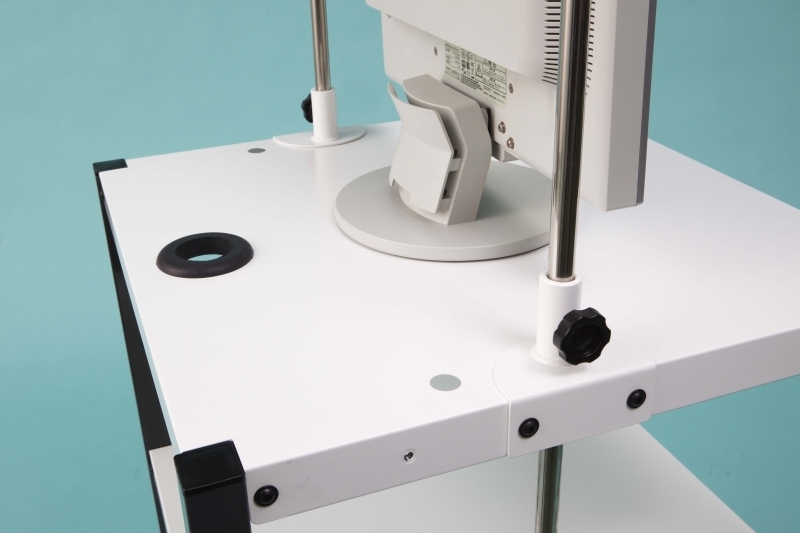

■(About) Fall Prevention metal fittings

　・Safety can be enhanced by attaching the metal fittings. （The fall prevention metal fittings can be attached at either the front or the rear.)

　・The fall prevention metal fittings can be attached at either of two locations. (See the third photo.)

■All types of grounding taps for OA (4 taps) are included.

■With 2-wheel stopper in front / without 2-wheel stopper in rear 　Φ100 twin wheel casters

■Wiring holes are provided at the rear of the shelf board (Φ45mm)

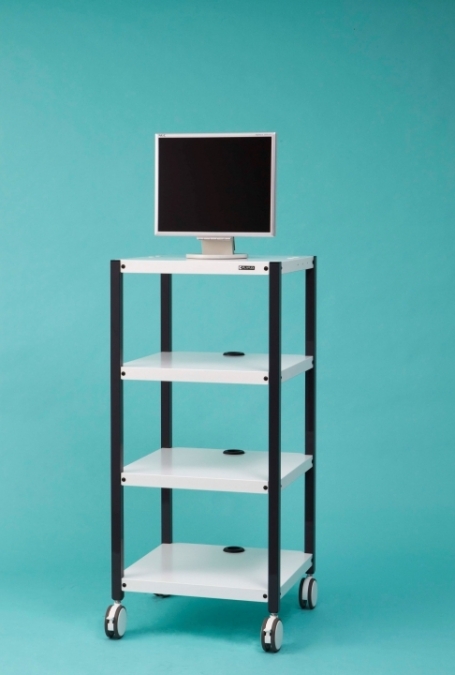

Product name	Display wagon with 4 shelves *Pictures shown
Product Number	DTW-1002
Body dimensions	W550mm×D550mm×H1205mm
Height between shelves	300mm
Effective shelf dimensions	W486mm×D486mm
Allowable load of shelves	top shelf 15kg, other shelves 20kg each
Total maximum allowable load	75kg

Product name	Display wagon with 4 shelves and fall prevention bracket
Product Number	DTW-1002TB
Body dimensions	W700mm×D550mm×H1205mm
Height between shelves	300mm
Effective shelf dimensions	W636mm×D486mm
Allowable load of shelves	top shelf 15kg, other shelves 20kg each
Total maximum allowable load	75kg
